EmberSmart Autonomous Wildfire Home Defense System by 3x30-30 Rule
EmberSmart Autonomous Wildfire Home Defense System by 3x30-30 Rule
Couldn't load pickup availability
No Power, No Water, No Internet, No Man, No Problem
Higher Temperature, Strong Wind and Very Lower Humidity
The 3x30-30 Rule is Essential for Wildfire Safety
Constitute 2 of 3 parameters 30-30-30 rules
Automatically triggers if any two conditions cross the threshold (Temp ≥ 30°C, Humidity ≤ 30%, Wind ≥ 30 km/h). This protects against sudden night fires or high-wind ember storms.
If an evacuation order hits, the system will still monitor conditions and defend the property with no internet, no grid power, and no human on-site.
SYSTEM TECHNICAL SPECIFICATIONS
- Power Supply: 7,200W (7.2 kWh, 36V 200Ah) LiFePO4 Battery Bank. Provides total electrical grid independence. Immune to Public Safety Power Shutoffs (PSPS) and grid failure.
- Pump Architecture: Dual (2x) 684W DC High-Pressure Water Pumps. Configured to run simultaneously, delivering up to an 80-meter hydraulic head range with dual redundancy. Supports heavy starting currents (up to 9A per pump).
- Combined Mechanical Load: 1,368 Watts (Continuous). Highly efficient power-to-load distribution preventing thermal battery stress inside enclosures.
- Electrical Runtime: 5 Hours and 15 Minutes (Continuous). Easily outlasts the peak thermal intensity window of an advancing wildfire front (typically 30 to 120 minutes).
- Hydraulic Supply Matching: Optimized for 20 MT (20,000 Litre) Static Water Reservoirs. Zero reliance on municipal water mains.
- System Flow Capacity: 2.8 Metric Tons of water per hour.
- Water Allocation Matrix: Directs 1,960 Litres/hr over the roof panels to generate a 32.7 Litre/minute vertical water curtain. The remaining 840 Litres/hr project a 14.5 meter buffer zone into surrounding vegetation to suppress local spot fires.
- Total Hydraulic Runtime: more than 5 Hours. Fully exhausts the 20 MT tank, ensuring protective continuity through the primary fire pass and secondary ember storms.
- Build Materials: Includes 30 meters of premium 304 Stainless Steel high-temperature hose lines and heavy Full-Brass Spring-Arm Impact Sprinklers built to withstand direct thermal exposure.
The full/complete kit includes:

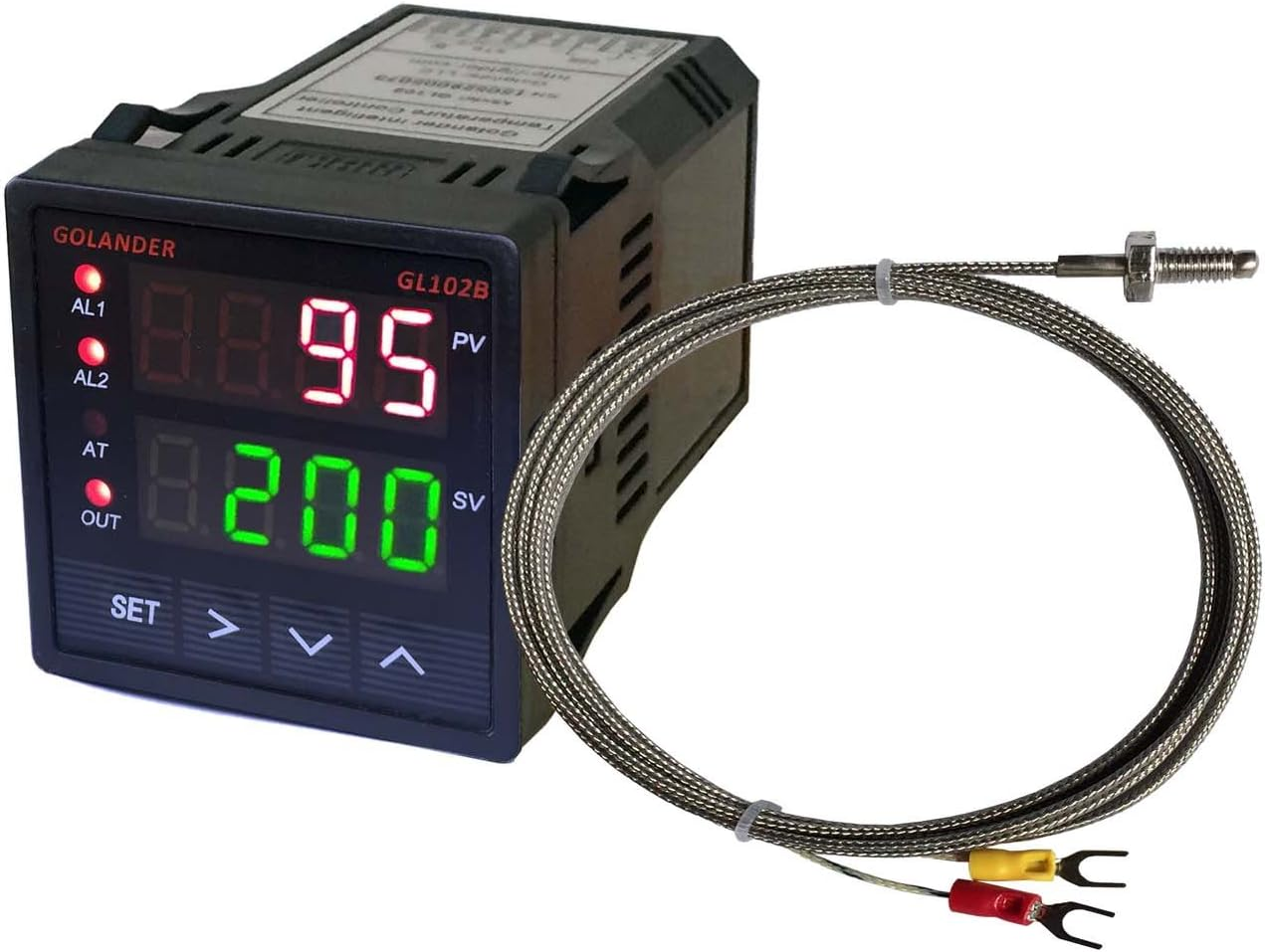

1. Automatic both temperature thermocouple, anemometer and humidity control system, with relay and circuit break switch base on 3x30-30 rule.

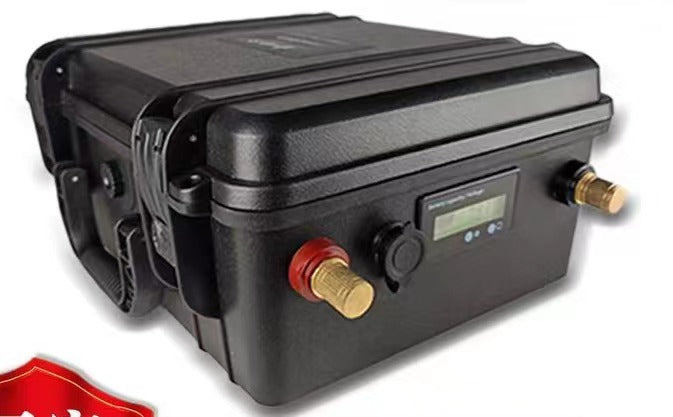

2. 36V, DC, 7.2KWh LiFePO4 Power Battery
3. 2 Water Pumps with flow rate 2.8MT/Hr, 8kg pressure,
4. 30 meters 304 stainless steel 3/4" hose（360 degree) x2

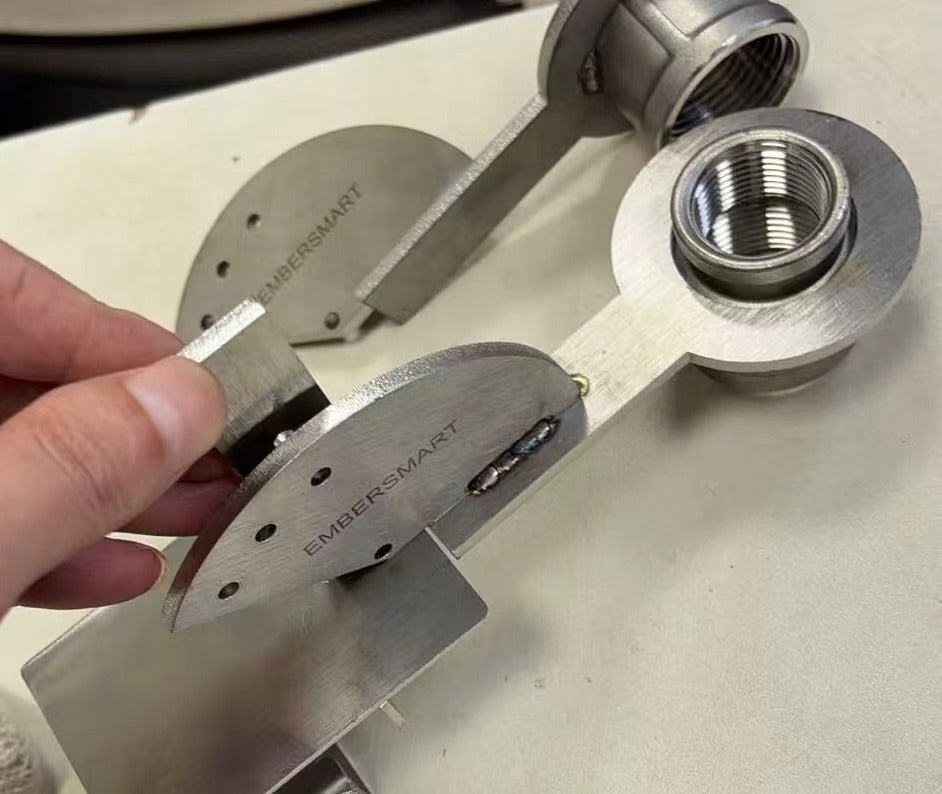

5. 2 Gutter Mount sprinkler brackets with adjustable by 304 stainless steel
6. 10 meter wire for water pump cover by stainless steel tube

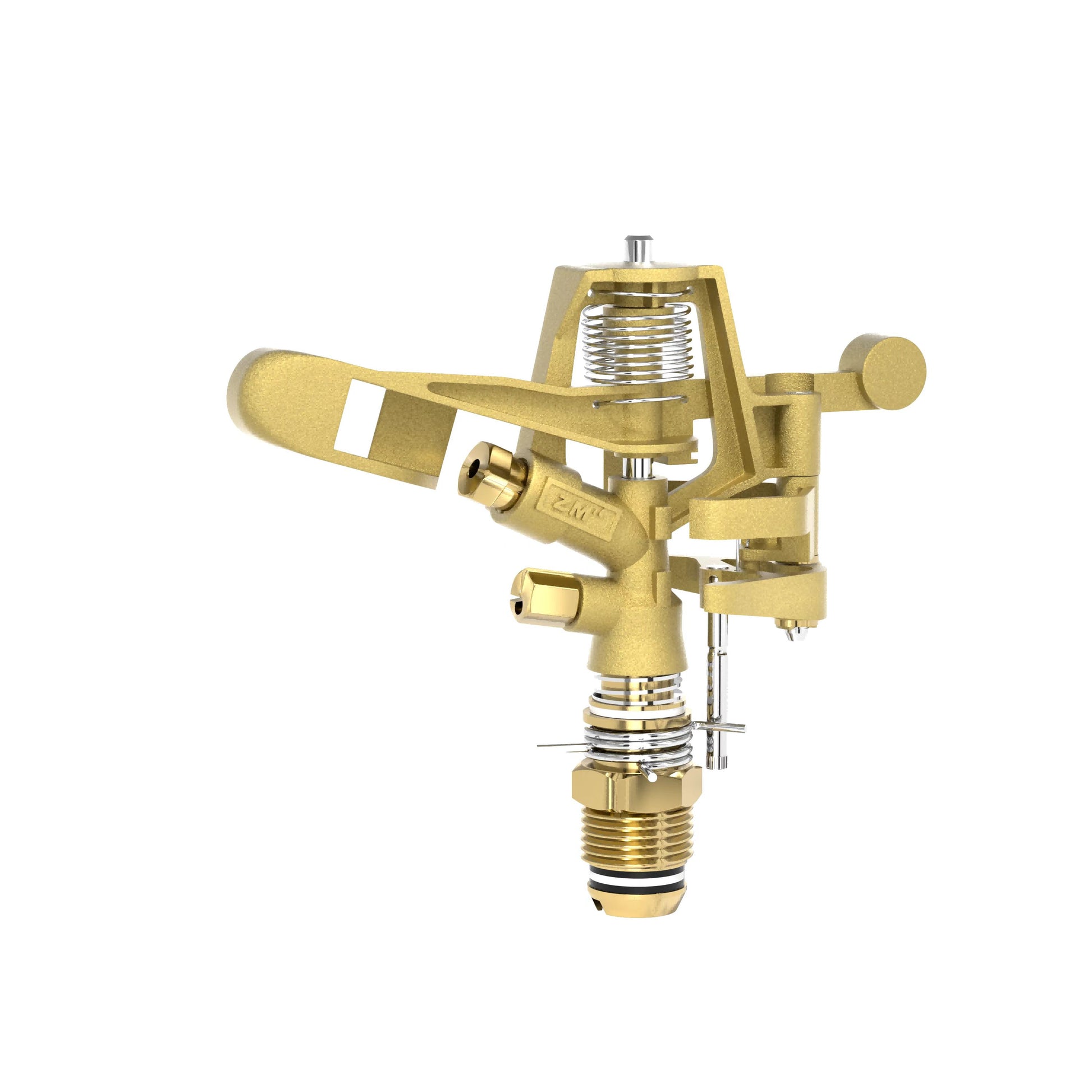

7. Fire Department grade 3/4” full brass with two mouth spring arm impact for 360 degree circle, Throw radius: 14.5 meters,x2, Cover 660 sq.meter (7110 sq.ft.)/sprinkler.

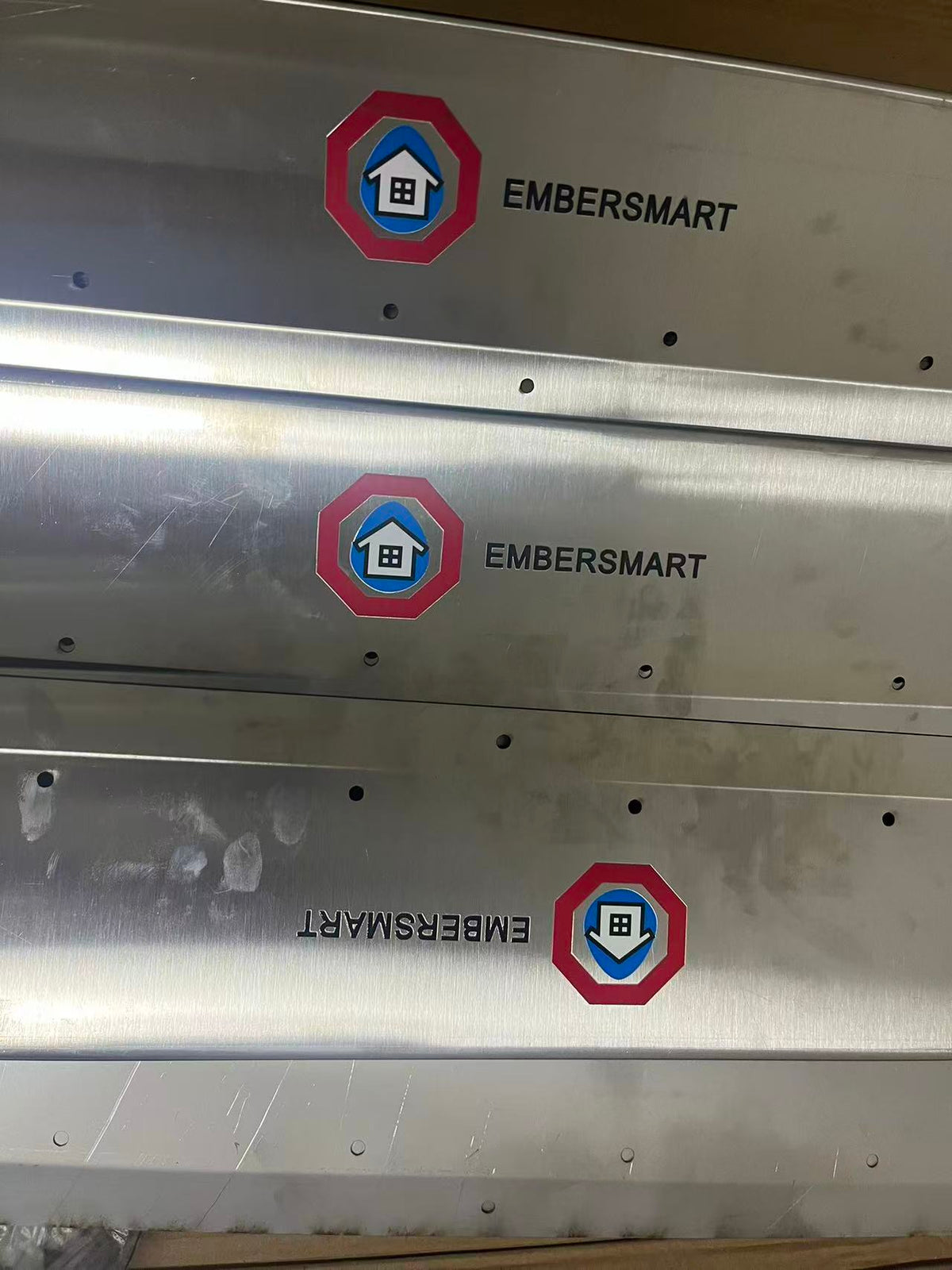

8. 20 pieces (20 Meters) 304 stainless steel gutter cover sheets,make water curtain fire barrier.

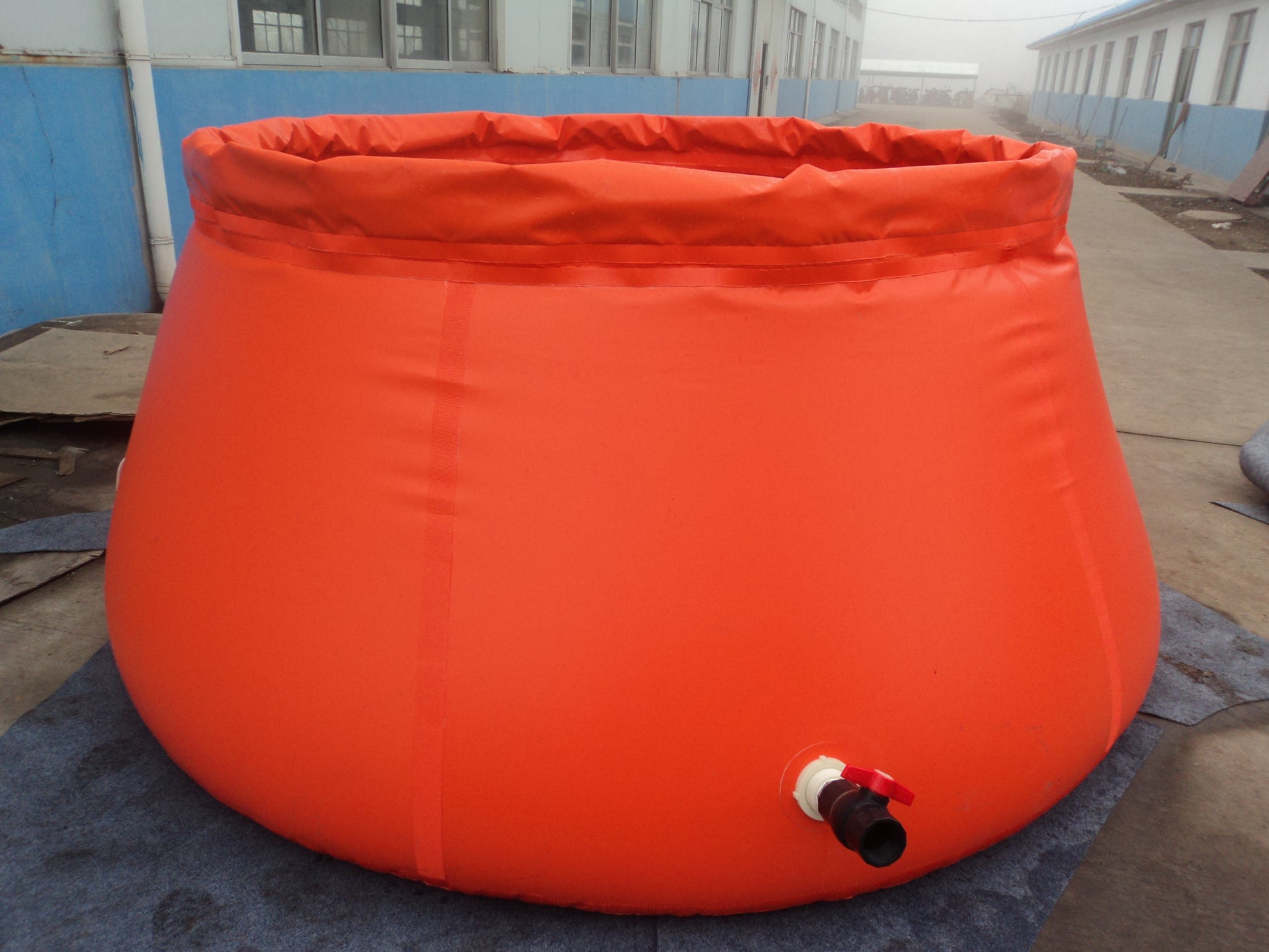

9. 20 MT (4400Imp) Portable Pumpkin Water Tank to supply water source when water is run out/shot down by city.

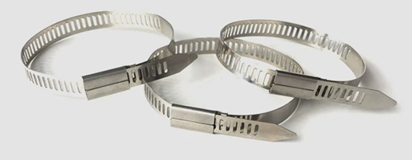

10 10 stainless steel ties to fix water hose moving by strong wind.

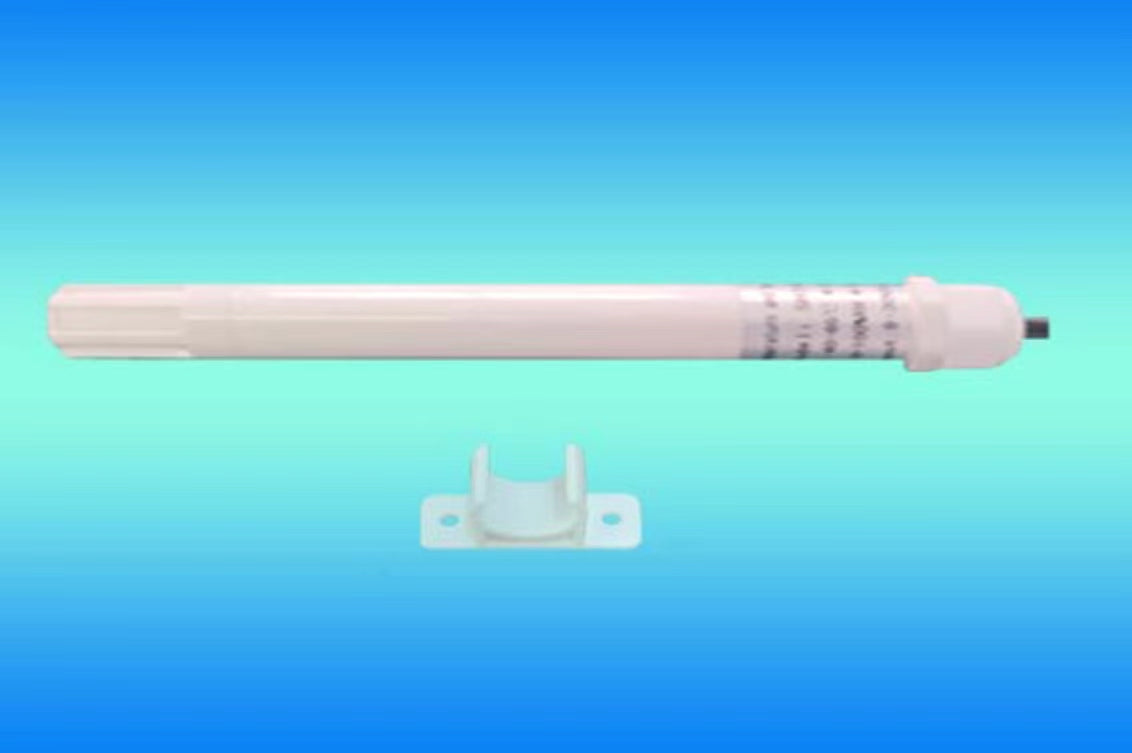

11. One stand for K type thermocouple and humidity sensor on ground 20 meter away from house.the wires are protected in steel tube.

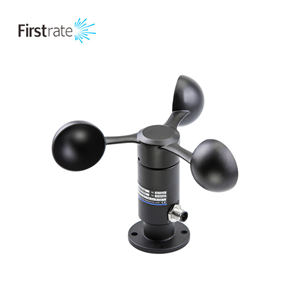

12. One 3 cup-type anemometer on roof with stainless steel tube covered.
The detail information aout the spart parts is on page: EmberSmart.
Delivery date: 2.5 months after the order received
Delivery package: (1) 20 MT size Pumpkin water tanks, Package bag1.1x1.2x0.6 Meter, 65kg
(2) Battery, 65Kg, 750x520x240mm
(3) 3 Stainless steel tubes, 2 water hoses
(4) 40 Gutter seal sheets
(5) 2 Water pumpers, power controll box, 2 sprinklers
Price Adjustment:
Case I: The price is C$1500 for water tank. The C$1500 will refund if you do buy water tank to use other water source ( pool , lake, river) near your house within 30 meter distance, but you have to buy:
(1) additional wire for pumper
(2) additional stainless steel tube for pumper's wire protection.
(3) additional 1" stainless steel water hose
Case II: If you need longer water hose and more gutter seal sheet, let us know.
Price for (1) 1" stainless steel water hose: C$150 for 10 meter with 1"connection.
(2) 5 meter (5 shees per package) for gutter seal sheet: C$100
Please contact us first before to send order to us. We ask you about the building information, location of house, and review it and give you some suggestions to buy right amount of spare parts, special for water hose, wire length for water pump if you have a pool or use water from lake.
This is a special order based on your house location, water source and installation piont for sprinkle on gutter. The order can not cancelled or goods return.
Common Questions
1. How does this system work automatic?
The system is automatic running by intelligent temperature and 3 cup-type anemometer controllers with relay harness and humidity index. e.g. When PV(measured value display) drops down to SV（target temperature display, the control will be off, when PV increases to SV+Hy, the control output will be on again in colling control mode for temperature controller.
2. How does the system help reduce ember exposure and fire?
(1) The system automatic turn on when before the embers coing. The air temperature is about 50-60oC which means the fire is close, the flying ember is coming too. The sprayed water wetting of rooftops tiles and cascades down to the ground (gutter is sealed) like a water full around the house to wet the windows, doors, wall and ground cover by sprinkler’s range; to reduce ignition risk from airborne embers with 2.8MT/hour water for 4.5 hours.
(2) All the components are selected for durability and made by 304 stainless steel (higher temperature resistance is more than 200oC), e.g., Hose, Tube to protect the pump wire and K type thermocouple, Seal gutter metal sheet, The stand for sprinkler and The stand on ground for K type theromocouple. The hose is fixed by stainless steel zip ties. So, the system is working under higher temperature (more than 200oC) and very strong wind which may be more than 50KM/hr.
3. What type of pump is included?
The package includes 80 meter pressure water pump head designed to draft water from well. It can draft water from nearby pool, pond, river, lake and water tank to supply the a 1 inch hose with 3/4” sprinkler network with higher pressure (36PSI) .

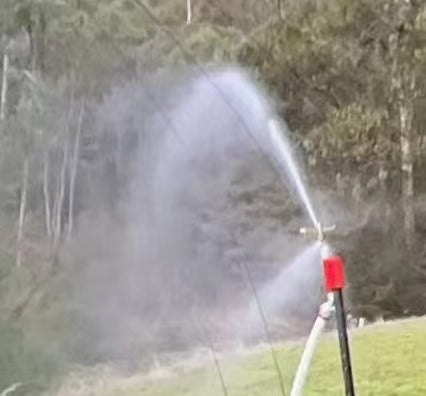

4. How far is the sprinkler’s spray?
The range is 14.5 meter.
5. Does the system is working under following condition: No Power, No Water, No Internet, No Man, Higher Temperature and Very strong wind?
Yes. The system has independent power source, water tank, water pump and automatic temperature controller system. The hose, tube, sprinkler, zip ties, stands and fitting are made by brass or stainless steel. It works very well in above condition. And the equipment will be wet under sprinkler coverage range (except K type thermocouple is 20 meter away from house).
6. Can the water hose be expanded over 30 meter?
Yes, the length of hose is 1”x30 meter. Since the water pump head is 80 meters, So you can expanded the hose with 1" to 20 meters additional more in order to keep higher pressure for water. You should manage your location of house where to install the sprinkler, and where is the source of water to determine the length of hose you required. There is a 20 meter hose with a 1” male adapter package required additional.
7. Do you think 40 sheets (1M/sheet) is enough to seal the gutter?
There are 40 sheets (40 meters) in package. You have to estimate the length of gutter. You can order more sheet if you need. There are 10 sheet per package.
8. Can we use water tank for other purpose?
Yes, you can. You may use it to collect the rain, pool or to be a aquarium.
9. Where to place the water tank?
Be sure to place it on the flattest, most solid concrete surface or compacted ground. Never place on a slope, as this could cause it to shift or slide.
10. Can we use battery for other purpose use?
Yes. This is a DC 36V. Becarefull the voltage of your application. But you have to make sure that the battery is in good working condition when you use for EmberSmart system. Read the battery guide before you use it.
11. How many hours need to set up this system?
1) Filling water tank full need more than 18 hours.
2) Recharge battery full over night before use in first time, then 5 hours to recharge.
3) Install the cover sheets on gutter around the house requires electric dill and ladder. This is the hardest job to do in this system, It may be take a half day depend on number of sheets.
4) Install the sprinkler on gutter, hose is banged by stainless steel zip ties
5) Set up the system, and testing after installation (e.g. change the SV number）. So, It may take 1 or 2 days to complete this installation job.
12. Can we use the system for lawn sprinkler?
Yes, you can.
